Exploded View

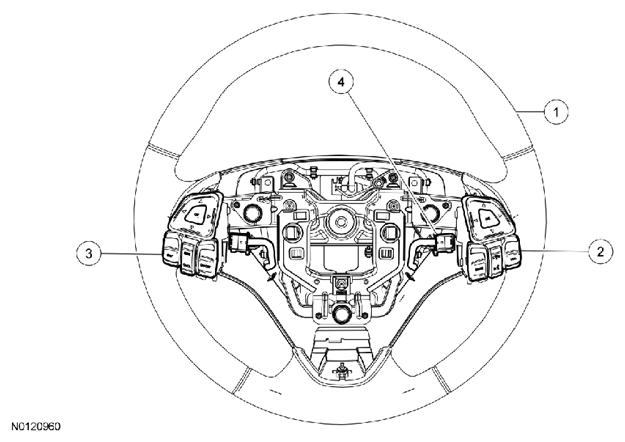

Fig 1: Identifying Steering Wheel Switches
G07420827Courtesy of FORD MOTOR CO.
Item Service Part Number Description
1 3600  Steering wheel
2 9C888  RH steering wheel switch
3 9C888  LH steering wheel switch
4 - Electrical connector (part of 14672  )
