Explorer Limited, 3.5 8, AWD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Seats
>>
6-Way Power Seat Passenger
6-Way Power Seat Passenger

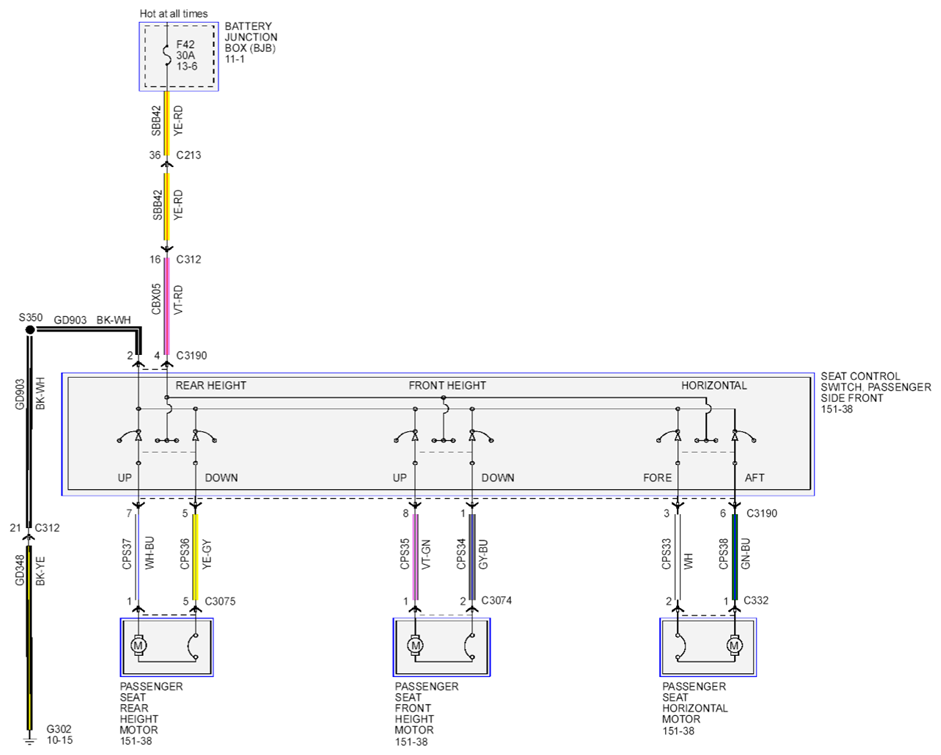

Fig 1: Power Seats Circuit Diagram (6-Way Power Seat Passenger)
