Auxiliary 110V Power Point Inverter
>>
Description And Operation
>>
110V AC Power Point and Inverter
>>
Component Location
Component Location

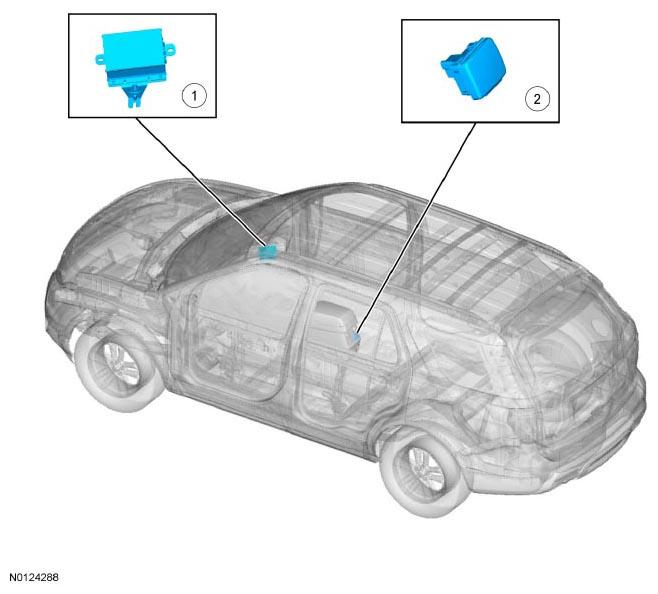

Fig 1: Identifying DC-AC Inverter And AC Power Point Components Locations
Courtesy of FORD MOTOR CO.
Item
Description
1
DC-AC
inverter
2
AC power point
Courtesy of FORD MOTOR CO.
