Ford
>>
2012
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Tensioner
>>

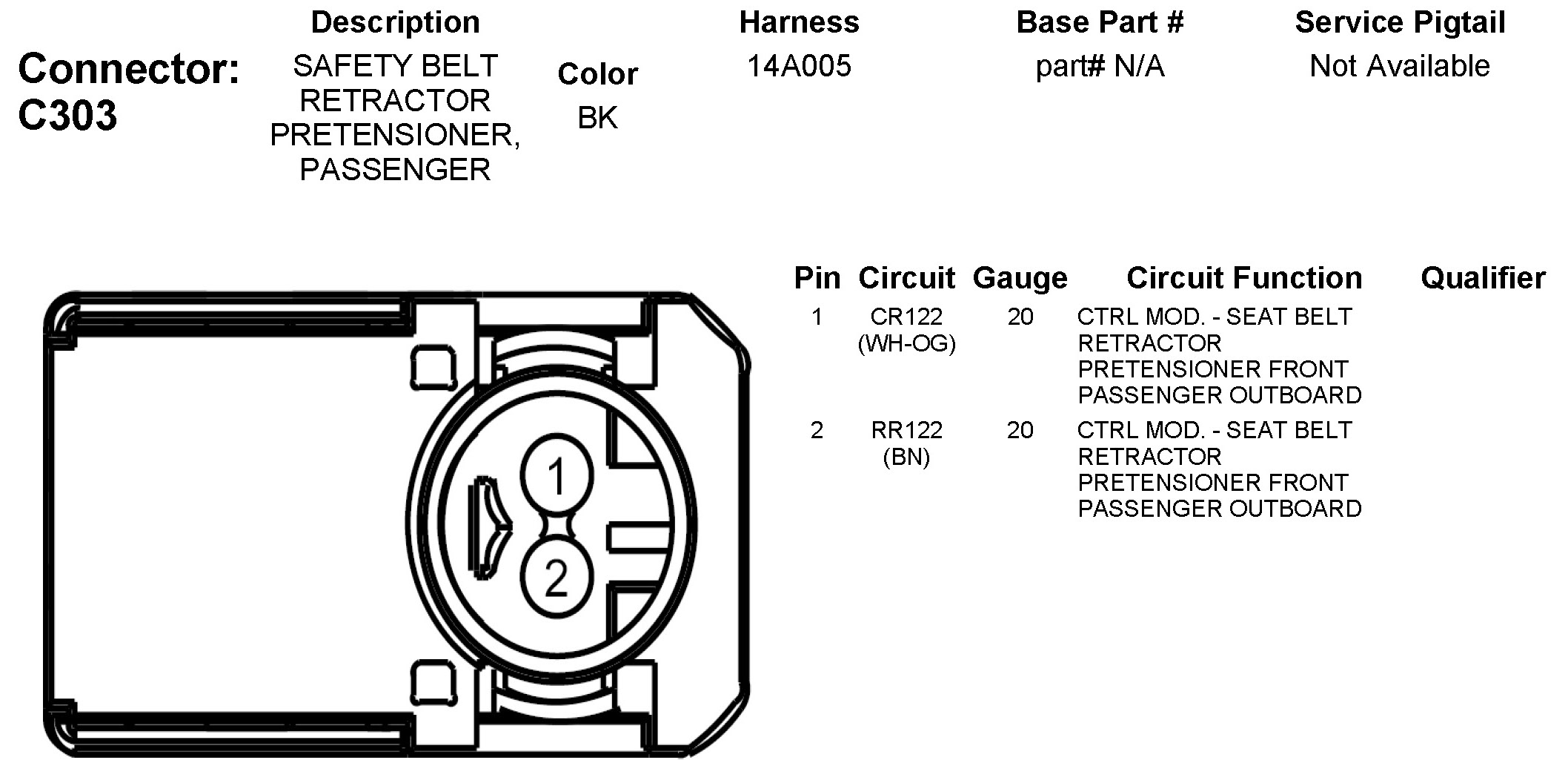

C303 Safety Belt Retractor Pretensioner, Passenger
C303 Safety Belt Retractor Pretensioner, Passenger
