Wiper Motor - Rear Window

Wiper Motor - Rear Window

Removal

1. Remove the rear wiper pivot arm. REFER to Wiper Pivot Arm - Rear .

2. Remove the liftgate trim panel. REFER to Liftgate Trim Panel .

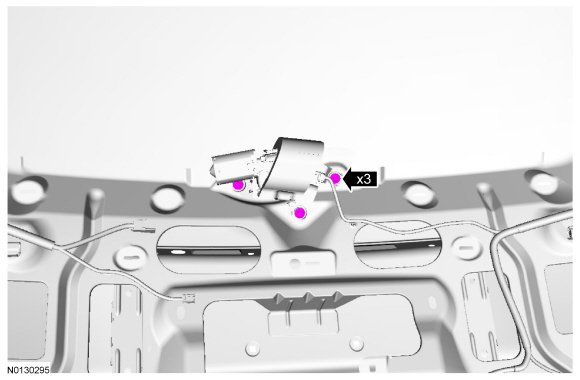

3. Remove the 3 rear window wiper motor assembly bolts.
- To install, tighten to 9 Nm (80 lb-in).

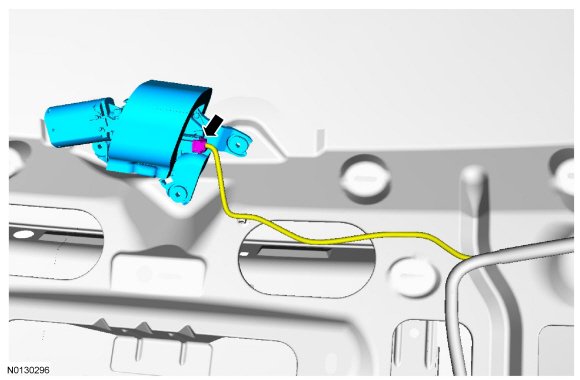

4. Disconnect the rear window wiper motor electrical connector and remove the rear window wiper motor.





Installation

1. To install, reverse the removal procedure.
