Wiper Mounting Arm and Pivot Shaft

Wiper Mounting Arm and Pivot Shaft

Removal

1. Remove the cowl panel. REFER to Cowl Panel .

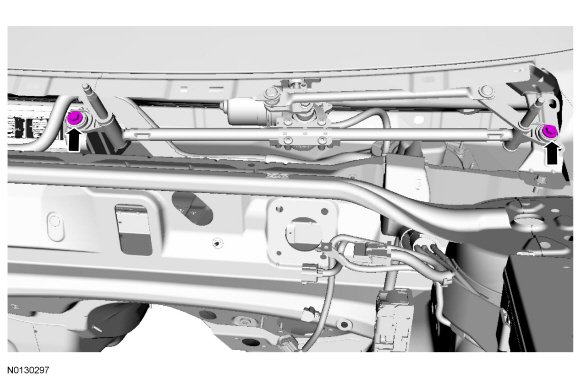

2. Remove the 2 wiper mounting arm and wiper pivot shaft bolts.

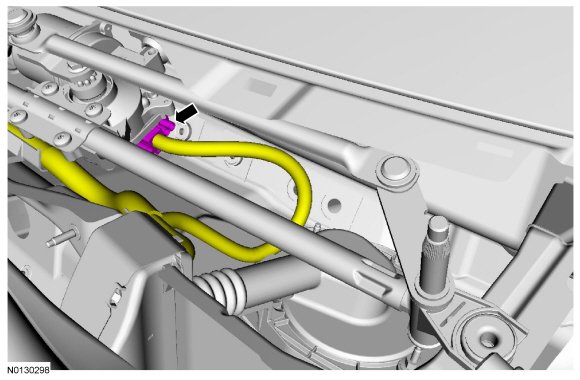

3. Disconnect the wiper motor electrical connector.





4. Remove the wiper mounting arm and wiper pivot shaft.

Installation

1. To install, reverse the removal procedure.
