Positive Crankcase Ventilation Valve: Service and Repair

Crankcase Vent Oil Separator - 2.0L GTDI

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

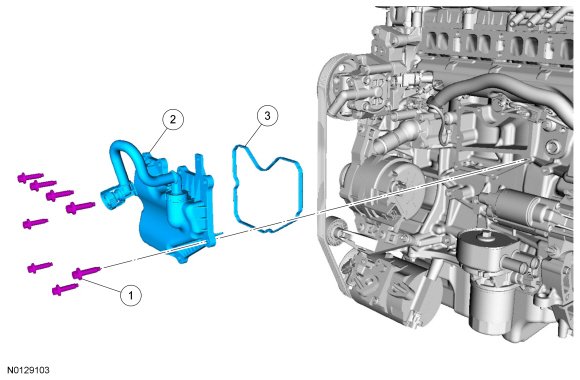

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the intake manifold. REFER to Intake Manifold .

2.
- To install, torque to 10 Nm (89 lb-in).





3. NOTE: Clean and inspect the gasket mating surfaces.

Replace the crankcase vent oil separator gasket as necessary.





Installation

1. To install, reverse the removal procedure.
