Accessory Drive Belt

Accessory Drive Belt - 2.0L GTDI

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The accessory drive belt is routed behind the accessory drive belt tensioner. It is necessary to remove the accessory drive belt tensioner to remove the accessory drive belt.

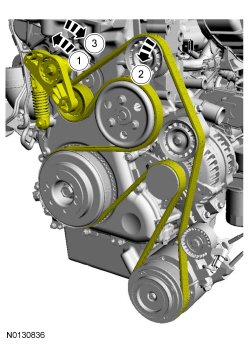

1.





2.
- 25 Nm (18 lb-ft).





Installation

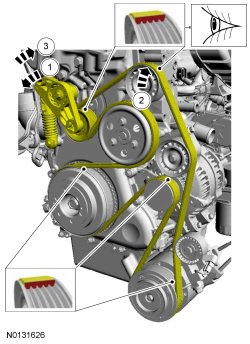

1. To install, reverse the removal procedure.
