Home >> Ford >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Diagrams >> C4182 Third Row Power-Stow Seat Motor, Right

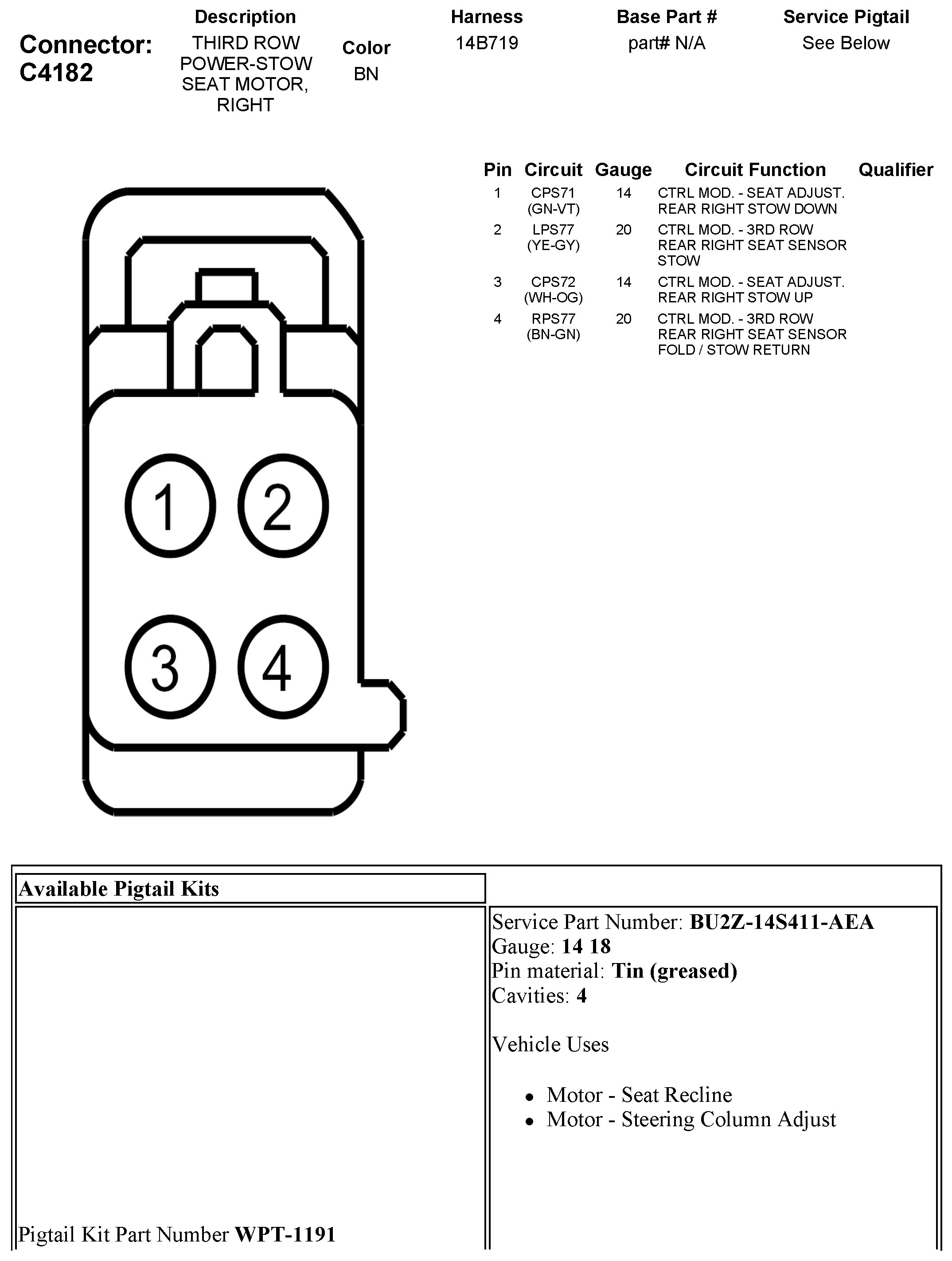

C4182 Third Row Power-Stow Seat Motor, Right
