Transmission Fluid Cooler Tubes - 3.5L Ti-VCT: Installation

Install the transmission return and inlet cooler tubes into the transmission fluid thermal bypass valve.

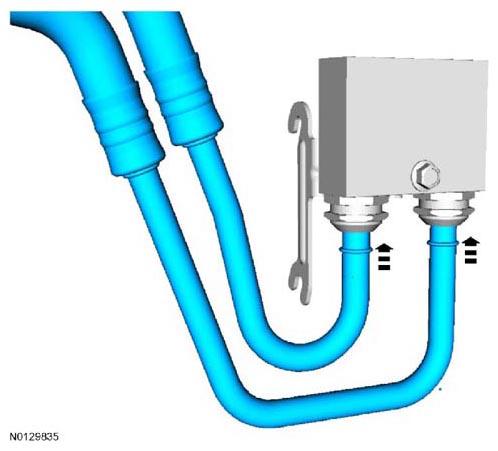

Fig 1: Installing Transmission Return And Inlet Cooler Tubes Into Transmission Fluid Thermal Bypass Valve
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler hose secondary latches.

Fig 2: Locating Cooler Hose Secondary Latches
Courtesy of FORD MOTOR CO.
Install the transmission fluid thermal bypass valve, the transmission fluid cooler tubes and the 2 nuts.
- Torque: 9 Nm (80 lb-in).

  Fig 3: Locating Transmission Fluid Thermal Bypass Valve Mounting Nuts
  Courtesy of FORD MOTOR CO.
Connect the transmission fluid cooler hoses to the OTA transmission fluid multi cooler.

Fig 4: Locating Transmission Fluid Cooler Hoses Clips
Courtesy of FORD MOTOR CO.
Inspect the transmission mounted transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary. Lubricate the transmission mounted transmission fluid cooler tube seals with clean Motorcraft® MERCON® LV Automatic Transmission Fluid and install the backing rings and seals on the transmission mounted transmission fluid cooler tubes.
1. Seal 7D258
2. Backing ring 7J324

  Fig 5: Identifying Backing Ring And Seal
  Courtesy of FORD MOTOR CO.
Position the 2 transmission mounted transmission fluid cooler tubes on the transmission and tighten the 2 transmission fluid cooler tube nuts.
- Torque: 30 Nm (22 lb-ft).

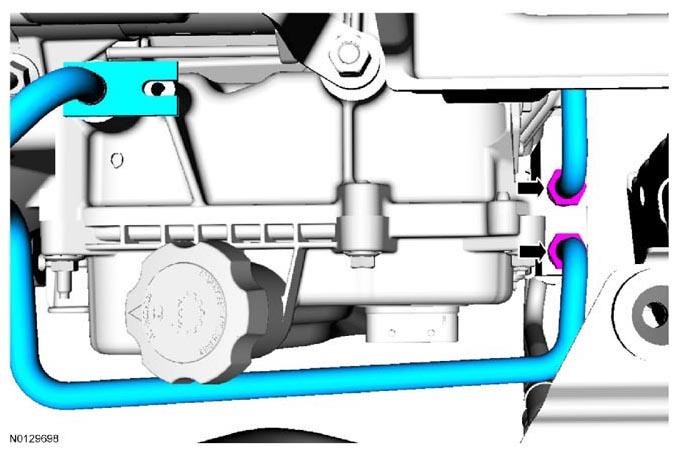

  Fig 6: Locating Transmission Mounted Transmission Fluid Cooler Tube Nuts
  Courtesy of FORD MOTOR CO.
Install a new transmission mounted transmission fluid cooler outlet tube bolt.
- Torque: 10 Nm (89 lb-in).

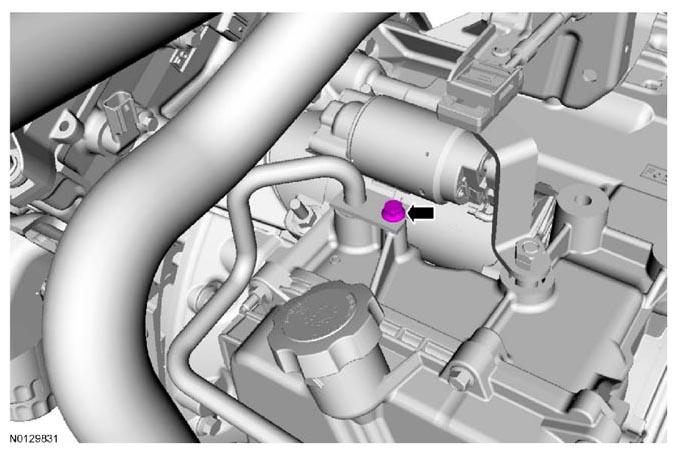

  Fig 7: Locating Transmission Fluid Cooler Outlet Tube Mounting Bolt
  Courtesy of FORD MOTOR CO.
Install a new transmission mounted transmission fluid cooler inlet tube bolt.
- Torque: 10 Nm (89 lb-in).

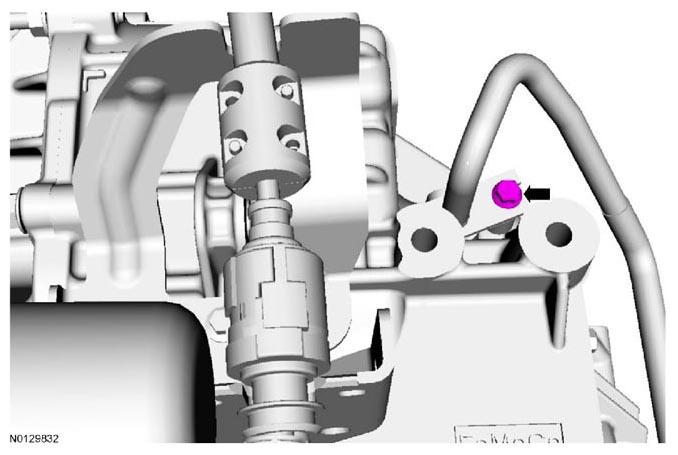

  Fig 8: Locating Transmission Fluid Cooler Inlet Tube Mounting Bolt
  Courtesy of FORD MOTOR CO.
Install the ACL assembly. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
Check the Motorcraft® MERCON® LV Automatic Transmission Fluid level and add Motorcraft® MERCON® LV Automatic Transmission Fluid as necessary.
