Thermal Bypass Valve - 2.0L GTDI: Removal

With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING for lifting points.
Remove the ACL assembly. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
For component location and reference, refer to Figure.

Fig 1: Thermal Bypass Valve Upper Line Connections
Courtesy of FORD MOTOR CO.
Fig 2: Thermal Bypass Valve Lower Line Connections
Courtesy of FORD MOTOR CO.

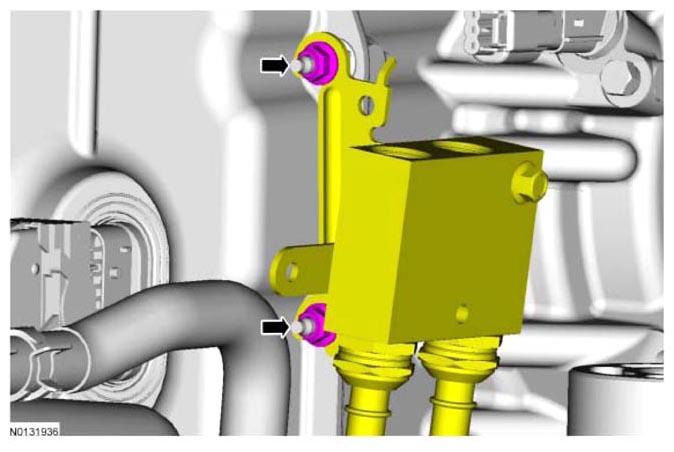

Fig 3: Locating Transmission Fluid Thermal Bypass Mounting Nuts
Courtesy of FORD MOTOR CO.
Special Tool(s): Disconnect Tool TOC Line (1/2") 307-569

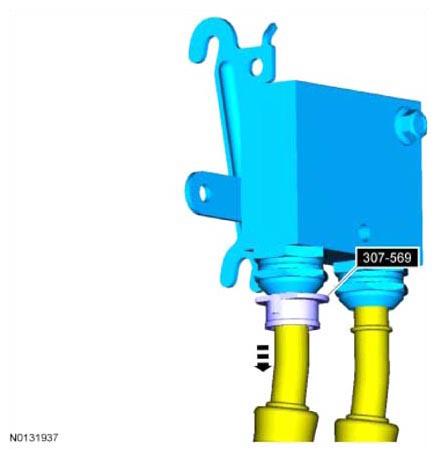

Fig 4: Disconnecting Transmission Fluid Cooler Inlet Hose From The Thermal Bypass Valve
Courtesy of FORD MOTOR CO.
