Transmission Cooling - 6F50 and 6F55

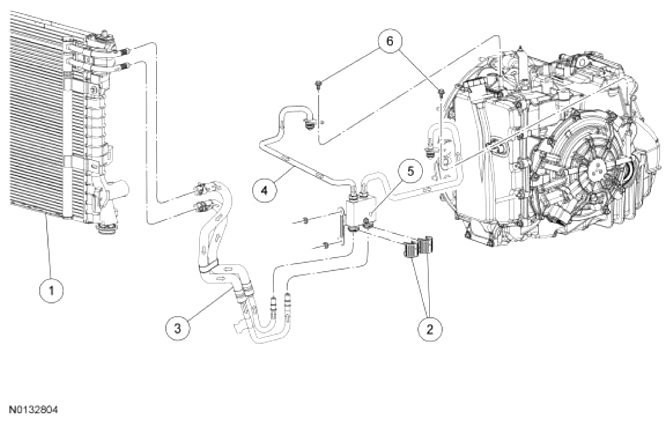

Fig 1: Identifying Transmission Cooling Components Location (6F50 And 6F55)
G08032458Courtesy of FORD MOTOR CO.
Item Service Part Number Description
1 19712  OTA Transmission fluid multi cooler
2 7J081  Transmission fluid cooler hose secondary latches
3 7R081  Transmission fluid cooler hose assembly
4 7R081  Transmission mounted transmission fluid cooler tube assembly
5 7H322  Transmission fluid thermal bypass valve
6 W712146  Transmission mounted transmission fluid cooler tube bolts
