Transmission Cooling - 6F35

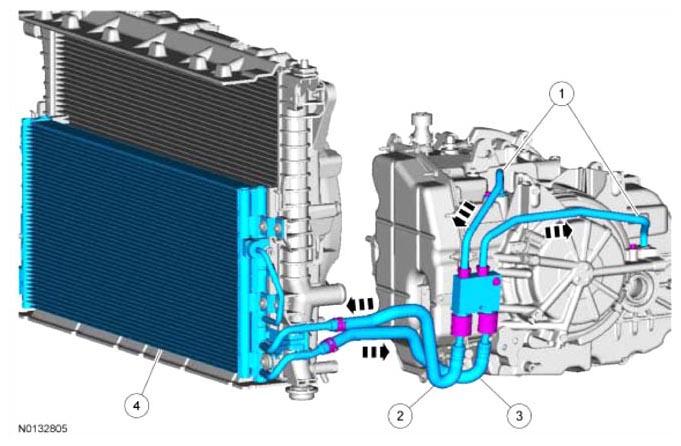

Fig 1: Identifying Transmission Cooling Components Location (6F35)
G08032460Courtesy of FORD MOTOR CO.
Item Service Part Number Description
1 7R081  Transmission mounted transmission fluid cooler tube assembly
2 7W063  Transmission fluid cooler inlet hose
3 7W064  Transmission fluid cooler outlet hose
4 19712  OTA Transmission fluid multi cooler
