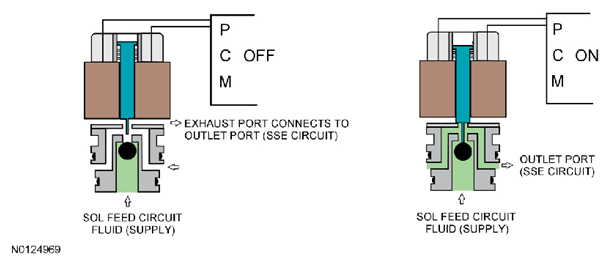

ON/OFF Solenoids

Courtesy of FORD MOTOR CO.

Item	Description
SSE	Normally closed solenoid that blocks SOL FEED pressure from the SSE circuit. When energized, pressure from the SSE circuit positions the multiplex shift valve to direct CBLR/C456 SUPPLY pressure to the low reverse clutch.
