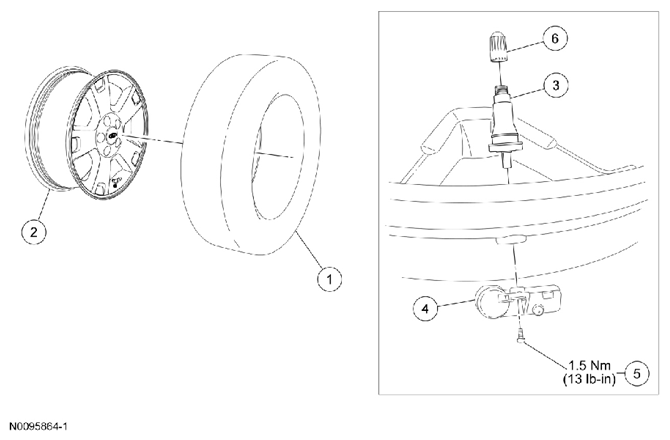

Exploded View
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 1508 | Tire | - | - | - |
| 2 | 1007 | Wheel | - | - | - |
| 3 | 1700 | Valve stem and screw (also part of 1A189 ) | - | - | - |
| 4 | 1A189 | TPMS sensor (a new sensor assembly includes and 1700 valve stem screw and cap) | - | - | - |
| 5 | - | Valve stem-to-TPMS sensor screw (part of 1700 or 1A189 ) | 2 Nm (13 lb-in) | - | - |
| 6 | 1A163 | Valve stem cap (also part of 1A189 ) | - | - | - |
