General Procedure
- Using alignment equipment and the manufacturer's instructions, measure the rear toe.
- Start the engine and center the steering wheel.
- Turn the engine OFF and, using a suitable steering wheel holding device, lock the steering wheel in the straight-ahead position.

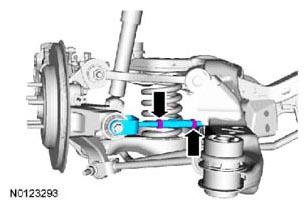

- Loosen the tie-rod jam nuts.

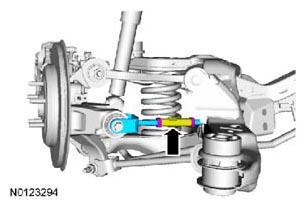

- Rotate the toe link adjusting rod until the toe setting is within specifications.
- Tighten the tie-rod jam nuts.
- Tighten to 80 Nm (60 lb-ft).
- Recheck the rear toe and adjust as necessary.
NOTE:
Do not allow the adjusting rod to rotate while tightening the jam nuts.
