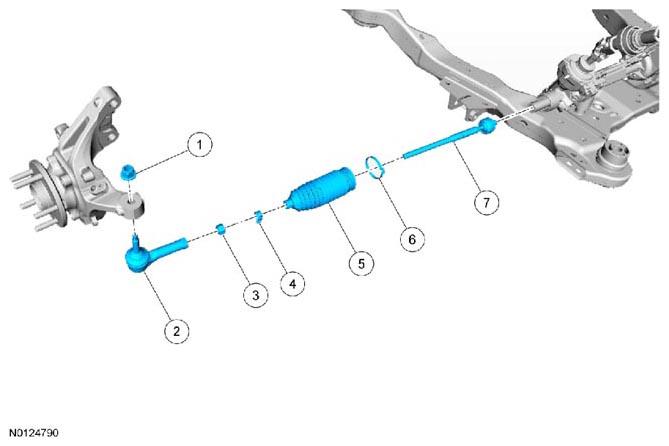

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W520215 | Outer tie-rod end nut | - | - | 150 Nm (111 lb-ft) |
| 2 | 3A130 | Outer tie-rod end | - | - | - |
| 3 | W713882 | Tie-rod jam nut (also part of 3280 ) | - | - | 63 Nm (46 lb-ft) |
| 4 | - | Outer bellows boot clamp (part of 3332 bellows boot kit) | - | - | - |
| 5 | - | Inner tie-rod bellows boot (part of 3332 bellows boot kit) | - | Premium Long-Life Grease | - |
| 6 | - | Inner bellows boot clamp (part of 3332 bellows boot kit) | - | - | - |
| 7 | 3280 | Inner tie rod | - | - | 90 Nm (66 lb-ft) |
