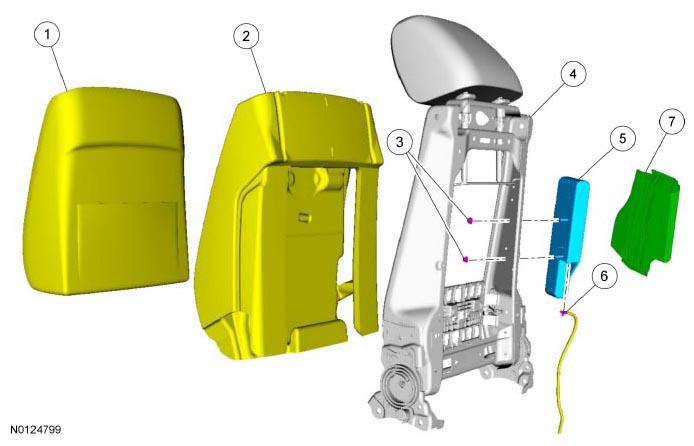

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | 64416 RH /64417 LH | Backrest cover | - | - | - |
| 2 | 64810 RH /64811 LH | Backrest foam pad | - | - | - |
| 3 | W520111 | Side air bag module nuts | - | - | 10 Nm (89 lb-in) |
| 4 | 61018 | Backrest frame | - | - | - |
| 5 | 611D10 RH /611D11 LH | Side air bag module | - | - | - |
| 6 | 14C687 | Side air bag module jumper harness | - | - | - |
| 7 | 610E38 | Side air bag module deployment chute | - | - | - |
