Pinpoint Test

WARNING: Do not handle, move or change the original horizontal mounting position of the RCM while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy® and cause serious personal injury or death.

NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.

NOTE: Only disconnect or reconnect SRS components when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.

NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford Catalog Advantage or equivalent to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.

NOTE: Do not probe any impact sensor. The impact sensor cannot be tested using a multi-meter

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

RETRIEVE RCM DTCs
1. Ignition ON.
2. Using a scan tool, perform RCM self-test to retrieve DTCs .
Was DTC B0090:11 or B0090:93 retrieved on-demand during self-test?
1. Yes:
  - This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test.
  - For DTC B0090:11, GO to 2 .
  - For DTC B0090:93, GO to 5.
2. No
  - This is an intermittent fault when present as a CMDTC only. GO to 10.
CHECK THE LEFT FRONTAL RESTRAINTS SENSOR DTC FOR A FAULT STATUS CHANGE (SHORT TO GROUND INDICATED)
NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.
1. Ignition OFF.
2. Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
3. Disconnect LH Front Impact Severity Sensor C1465.
  - Remove the ACL. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
4. Repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
5. Ignition ON.
6. Using a scan tool, perform RCM self-test to retrieve DTCs .
Did the on-demand DTC change from B0090:11 to B0090:93?
1. Yes:
  - INSTALL a new LH front impact severity sensor. REFER to Front Impact Severity Sensor . GO to 11.
2. No
  - GO to 3 .

CHECK THE LH FRONT IMPACT SEVERITY SENSOR FEED CIRCUIT FOR A SHORT TO GROUND

Ignition OFF.
Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
Disconnect RCM C310A and C310B.

Measure:

LH Front Impact Severity Sensor			Ground

C1465			Ground
Pin	Circuit	Measurement	Pin	Circuit
1	VR213 (VT/GN)		-	Ground

Is the resistance greater than 10, 000 ohms?

Yes:
- GO to 4 .
No
- REPAIR the circuit.
- Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.
- GO to 11.

CHECK FOR A SHORT BETWEEN LH FRONT IMPACT SEVERITY SENSOR CIRCUITS

Measure:

LH Front Impact Severity Sensor			LH Front Impact Severity Sensor

C1465			C1465
Pin	Circuit	Measurement	Pin	Circuit
1	VR213 (VT/GN)		2	RR129 (YE/GY)

Is the resistance greater than 10, 000 ohms?

Yes:
- GO to 9.
No
- REPAIR the circuit(s).
- Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.
- GO to 11.

CHECK THE LH FRONT IMPACT SEVERITY SENSOR AND RCM CONNECTIONS (NO OPERATION INDICATED)
1. Ignition OFF.
2. Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
3. Inspect LH Front Impact Severity Sensor C1465 to be fully seated and locked. Seat and lock the connector as necessary.
4. Gain access to the RCM and inspect C310A and C310B to be fully seated and locked. Seat and lock the connector as necessary. REFER to Restraints Control Module (RCM) .
5. Repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
6. Ignition ON.
7. Using a scan tool, perform RCM self-test to retrieve DTCs .
Was DTC B0090:93 retrieved on-demand during self-test?
1. Yes:
  - GO to 6 .
2. No
  - The fault has been corrected. GO to 11.

CHECK THE LH FRONT IMPACT SEVERITY SENSOR FEED CIRCUIT FOR A SHORT TO VOLTAGE (NO OPERATION INDICATED)

Ignition OFF.
Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
Disconnect LH Front Impact Severity Sensor C1465.
- Remove the ACL. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
Disconnect RCM C310A and C310B.
Repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
Ignition ON.

Measure:

LH Front Impact Severity Sensor			Ground

C1465			Ground
Pin	Circuit	Measurement	Pin	Circuit
1	VR213 (VT/GN)		-	Ground

Is any voltage present?

Yes:
- REPAIR the circuit.
- Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.
- GO to 11.
No
- GO to 7 .

CHECK THE LH FRONT IMPACT SEVERITY SENSOR CIRCUITS FOR AN OPEN

Ignition OFF.
Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .

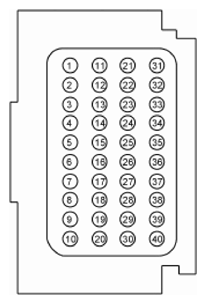

Measure:

RCM			LH Front Impact Severity Sensor

C310B			C1465
Pin	Circuit	Measurement	Pin	Circuit
27	VR213 (VT/GN)		1	VR213 (VT/GN)
28	RR129 (YE/GY)		2	RR129 (YE/GY)

Are the resistances less than 0.5 ohm?

Yes:
- GO to 8 .
No
- REPAIR the circuit(s).
- Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.
- GO to 11.

CHECK THE LEFT FRONTAL RESTRAINTS SENSOR DTC FOR A FAULT STATUS CHANGE (NO OPERATION INDICATED)

NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the reported fault changes, this indicates the RCM is functioning correctly and is not the source of the fault.

Connect RCM C310A and C310B.

Connect a fused jumper wire:

LH Front Impact Severity Sensor			LH Front Impact Severity Sensor

C1465			C1465
Pin	Circuit	Measurement	Pin	Circuit
1	VR213 (VT/GN)		2	RR129 (YE/GY)

Repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
Ignition ON.
Using a scan tool, perform RCM self-test to retrieve DTCs .

Did the on-demand DTC change from B0090:93 to B0090:11?

Yes:
- REMOVE the fused jumper wire and INSTALL a new LH front impact severity sensor. REFER to Front Impact Severity Sensor . GO to 11.
No
- REMOVE the fused jumper wire and GO to 9.

CONFIRM THE RCM FAULT
NOTE: Make sure all SRS components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
1. Ignition OFF.
2. Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
3. Prior to reconnecting any previously disconnected SRS component:
  - inspect connector(s) (including any inline connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
  - inspect wire harness for any damaged, pinched, cut or pierced wires.
  - inspect RCM C310A and C310B CPA lever/lock for correct operation. REFER to Restraints Control Module (RCM) .
  - repair any concerns found.
    Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.
4. Connect LH Front Impact Severity Sensor C1465 (if previously disconnected).
5. Connect RCM C310A and C310B.
6. Repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
7. Ignition ON.
8. Using a scan tool, perform RCM self-test to retrieve DTCs .
Was the original DTC retrieved on-demand during self-test?
1. Yes:
  - CHECK OASIS for any applicable TSBs . If a TSB exists for this concern, discontinue this test and follow TSB instructions. If no TSBs address this concern, INSTALL a new RCM. REFER to Restraints Control Module (RCM) . GO to 11.
2. No
  - In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test . GO to 10 .
CHECK FOR AN INTERMITTENT FAULT
1. Ignition OFF.
2. Depower the SRS. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
3. Disconnect LH Front Impact Severity Sensor C1465.
  - Remove the ACL. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
4. Disconnect RCM C310A and C310B.
5. Inspect for the following:
  - Inspect harness and component connectors for loose or spread terminals and loose or frayed wire connections at terminals.
  - Inspect wire harness for any damage, pinched, cut or pierced wires.
  - Inspect RCM C310A and C310B CPA lever/lock for correct operation. REFER to Restraints Control Module (RCM) .
  - repair any concerns found.
    Refer to OEM CONNECTOR REPAIR PROCEDURES for connector information.
6. Connect all previously disconnected component(s)/connector(s).
7. Repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
8. Ignition ON.
9. Using a scan tool, perform RCM self-test to retrieve DTCs .
Was DTC B0090:11 or B0090:93 retrieved on-demand during the self-test?
1. Yes:
  - This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test.
  - For DTC B0090:11, GO to 2.
  - For DTC B0090:93, GO to 5.
2. No
  - The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test . GO to 11 .
CHECK FOR ADDITIONAL SRS DTCs
1. Ignition OFF.
  WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
2. Reconnect all SRS components (if previously disconnected).
3. If previously directed to depower the SRS, repower the SRS. Do not prove out the SRS at this time. REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
4. Ignition ON.
5. Using a scan tool, perform Restraints self-test to retrieve DTCs .
  NOTE: When selecting Restraints from the Self Test menu, DTCs are retrieved from the RCM and OCSM.
Are any RCM and/or OCSM DTCs retrieved on-demand during self-test?
1. Yes:
  - Do not clear any DTCs until all DTCs have been resolved. REFER to DTC Chart: Restraint Control Module (RCM) or REFER to DTC Chart: Occupant Classification System Module (OCSM) for pinpoint test direction.
2. No
  - CLEAR all RCM and OCSM CMDTCs . PROVE OUT the SRS. The repair is complete. RETURN the vehicle to the customer.
