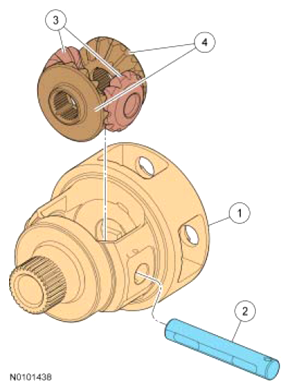

Differential Exploded View

WARNING: This page is about a different variant/trim than selected.
G08411567Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7F465 Differential housing
2 - Pinion shaft
3 - Pinion gears
4 - Side gears
