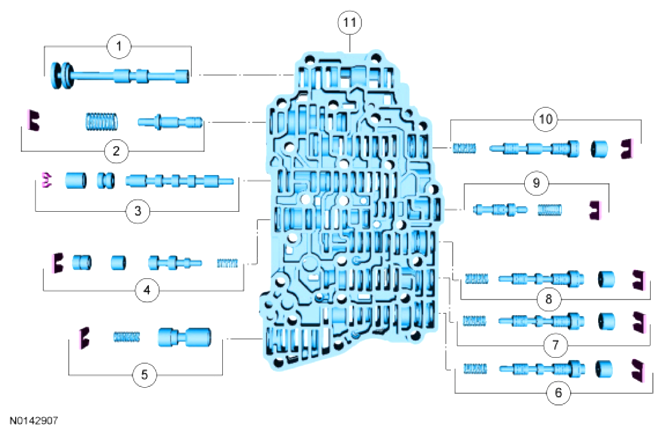

Main Control Valve Body
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Manual valve |
| 2 | Solenoid pressure regulator valve assembly |
| 3 | Clutch bypass valve |
| 4 | TCC regulator valve |
| 5 | Control pressure regulator |
| 6 | Direct (3, 5, R) clutch regulator valve |
| 7 | Intermediate (2, 6) clutch regulator valve |
| 8 | Forward (1, 2, 3, 4) clutch regulator valve |
| 9 | Forward (1, 2, 3, 4) clutch latch valve |
| 10 | Low reverse/overdrive (4, 5, 6) clutch regulator valve |
| 11 | Valve body |
