External Sealing
WARNING: This page is about a different variant/trim than selected.
The torque converter housing has a lip-type seal that seals the torque converter hub. The pump assembly seals to the torque converter housing with a rubber seal. The manual shaft and halfshafts also use liptype seals.
The torque converter housing is sealed to the transmission case with silicone sealant.
The main control cover is sealed to the transmission case with silicone sealant and seals to the solenoid body with a reusable rubber gasket. The TSS sensor is sealed to the transmission case with an O-ring seal.
The line pressure tap plug and transmission fluid drain plug have pipe threads and seal when tightened to specification.

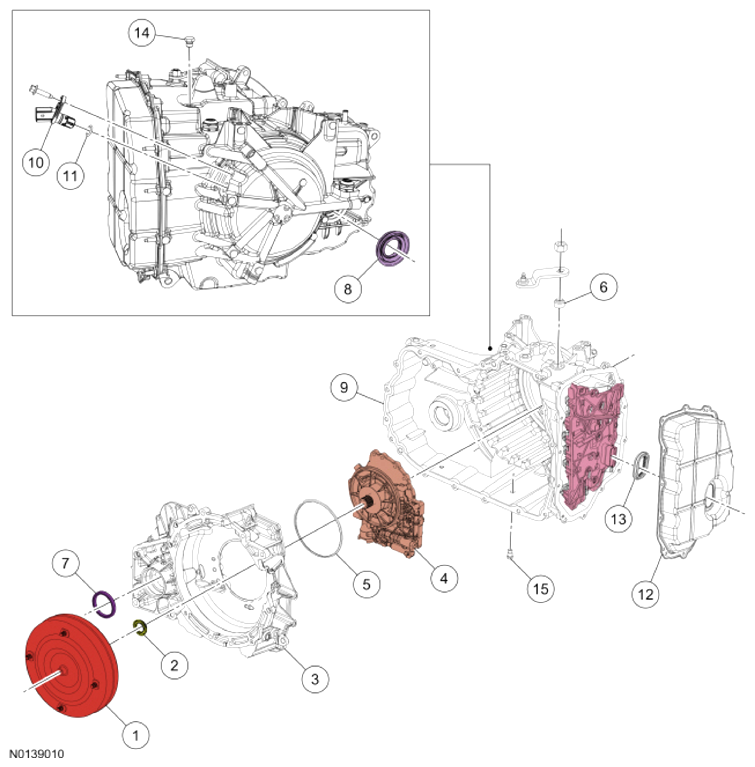

| Item | Description |
|---|---|
| 1 | Torque converter |
| 2 | Torque converter hub seal |
| 3 | Torque converter housing |
| 4 | Pump assembly |
| 5 | Pump assembly-to-torque converter housing O-ring seal |
| 6 | Manual control shaft seal |
| 7 | RH halfshaft seal |
| 8 | LH halfshaft seal |
| 9 | Transmission case |
| 10 | TSS sensor |
| 11 | TSS sensor O-ring seal |
| 12 | Main control cover |
| 13 | Main control-to-cover seal |
| 14 | Line pressure tap plug |
| 15 | Drain plug |
