Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Clean the oil pump and cylinder block mating surfaces with Motorcraft® Metal Surface Prep.

Install the oil pump assembly.
- Tighten the 4 bolts in the sequence shown in illustration in 2 stages:
  - Stage 1: Tighten to 10 Nm (89 lb-in).
  - Stage 2: Tighten to 20 Nm (177 lb-in).
Fig 1: Identifying Bolt Tightening Sequence Of Oil Pump
Courtesy of FORD MOTOR CO.
Install the oil pump sprocket and bolt.
- Tighten to 25 Nm (18 lb-ft).
Fig 2: Locating Oil Pump Sprocket Bolt
Courtesy of FORD MOTOR CO.
Install the chain on the oil pump sprocket.
1. Install the tensioner and the 2 shoulder bolts.
  - Tighten to 10 Nm (89 lb-in).
2. Push the tensioner spring down and position the spring under the shoulder bolt.

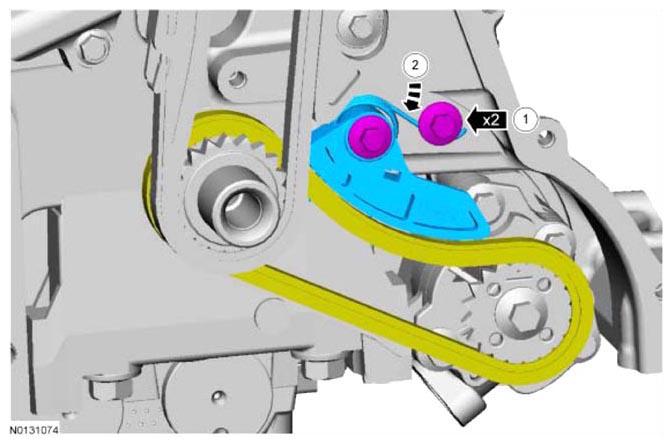

Fig 3: Positioning Of Spring Under Shoulder Bolt
Courtesy of FORD MOTOR CO.
Install the oil pump screen and pickup tube and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

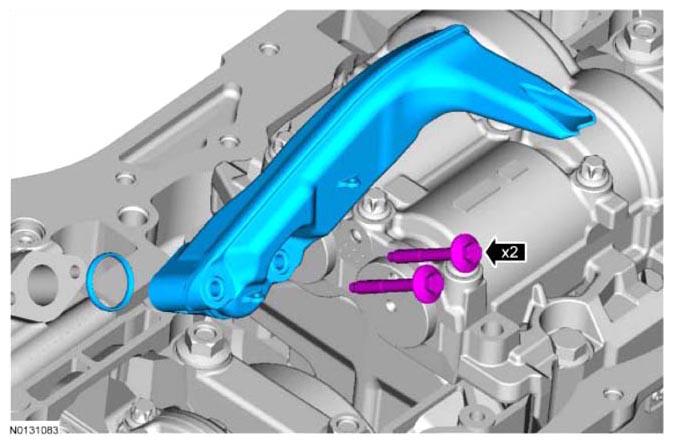

Fig 4: Installing Oil Pump Screen And Pickup Tube With Bolts
Courtesy of FORD MOTOR CO.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces to sealant.

Clean all the oil pan and cylinder block mating surfaces with Motorcraft® Metal Surface Prep.
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with Motorcraft® Metal Surface Prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm (0.118 in) bead of silicone gasket and sealant to the oil pan-to-engine block mating surface.

Fig 5: Identifying Bead Of Silicone Gasket And Sealant To Oil Pan-To-Engine Block Mating Surface
Courtesy of FORD MOTOR CO.
NOTE: Do not tighten the oil pan bolts at this time.

Position the oil pan onto the engine and install the 13 bolts finger-tight.

Fig 6: Locating Oil Pan Bolts
Courtesy of FORD MOTOR CO.
Using a straight edge, align the front surface of the oil pan flush with the front surface of the engine block.

Fig 7: Aligning Front Surface Of Oil Pan Flush With Front Surface Of Engine Block Using Straight Edge
Courtesy of FORD MOTOR CO.
Tighten in the sequence shown in illustration.
- Tighten to 20 Nm (177 lb-in).

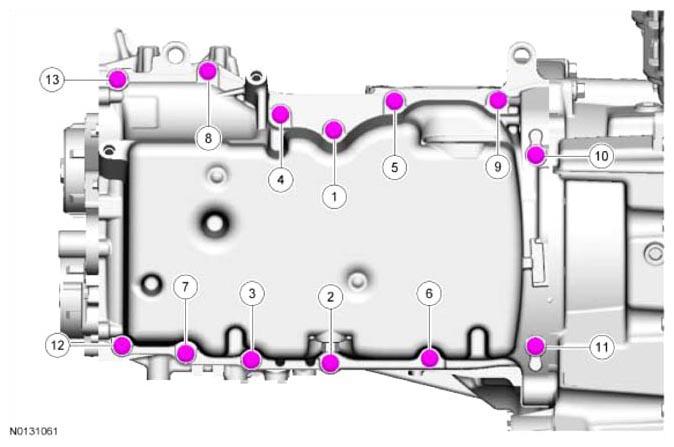

Fig 8: Identifying Bolt Tightening Sequence Of Engine Block Cover
Courtesy of FORD MOTOR CO.
Install the oil pan-to-bellhousing bolt.
- Tighten to 48 Nm (35 lb-ft).
Fig 9: Locating Oil Pan-To-Bellhousing Bolt
Courtesy of FORD MOTOR CO.
Install the 3 bellhousing-to-oil pan bolts.
- Tighten to 48 Nm (35 lb-ft).
Fig 10: Locating Bellhousing-To-Oil Pan Bolts
Courtesy of FORD MOTOR CO.
Install the A/C compressor, the 2 bolts and the stud.
- Tighten the bolts to 25 Nm (18 lb-ft) and the stud to 9 Nm (80 lb-in).
  - Install the nut and tighten to 25 Nm (18 lb-ft).
Fig 11: Locating A/C Compressor Nut, Stud And Bolts
Courtesy of FORD MOTOR CO.
Connect the 2 A/C compressor electrical connectors.
- Attach the wiring harness retainer to the A/C tube stud bolt.
Fig 12: Locating A/C Compressor Electrical Connector And Tube Stud Bolt
Courtesy of FORD MOTOR CO.
Using a floor jack and a wooden block, support the engine.
- Remove 303-F072 .

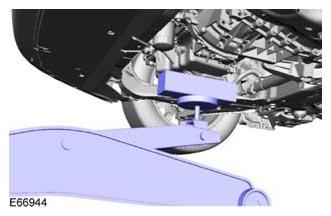

Fig 13: Supporting Engine Using Floor Jack And Wooden Block
Courtesy of FORD MOTOR CO.
Install the engine front cover. REFER to Engine Front Cover .
Install the oil level indicator.

Fig 14: Identifying Oil Level Indicator
Courtesy of FORD MOTOR CO.
Fill the engine with clean engine oil.
