Removal And Installation: Flexplate: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING for lifting points.
  2. Remove the transaxle. REFER to the apprpriate Transmission.
  3. NOTE: Do not reuse the flexplate bolts.

    Install 303-103  (T74P-6375-A) and remove the 6 bolts and the flexplate.

    • Discard the bolts.

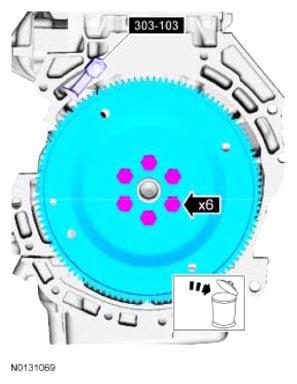

    Fig 1: Locating Flexplate Bolts
    G08028726Courtesy of FORD MOTOR CO.
