Engine Oil Pressure (EOP) Switch: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING for lifting points.
Loosen the 4 retainers and remove the underbody shield.

Fig 1: Locating Underbody Shield Retainers
Courtesy of FORD MOTOR CO.
NOTE: Apply thread sealant to the EOP switch threads.

Disconnect the EOP switch electrical connector.
- Remove the EOP switch.
- To install, tighten to 15 Nm (133 lb-in).

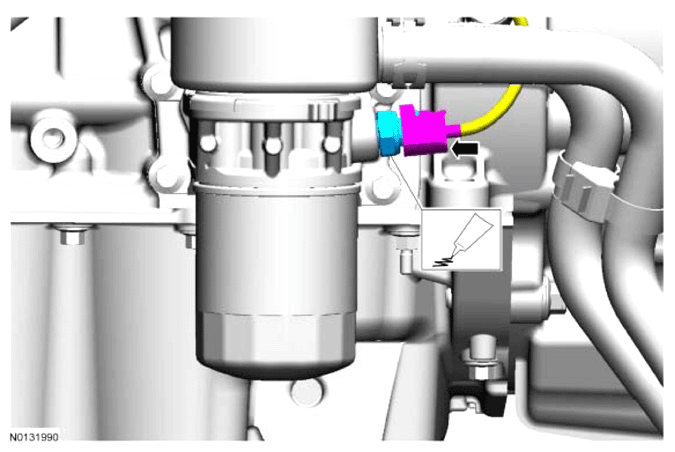

Fig 2: Locating EOP Switch Electrical Connector
Courtesy of FORD MOTOR CO.
