Engine Mount: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING for lifting points.
Loosen the 4 retainers and remove the underbody shield.

Fig 1: Locating Underbody Shield Retainers
Courtesy of FORD MOTOR CO.
Using a floor jack and a wooden block, support the engine.

Fig 2: Supporting Engine Using Floor Jack And Wooden Block
Courtesy of FORD MOTOR CO.

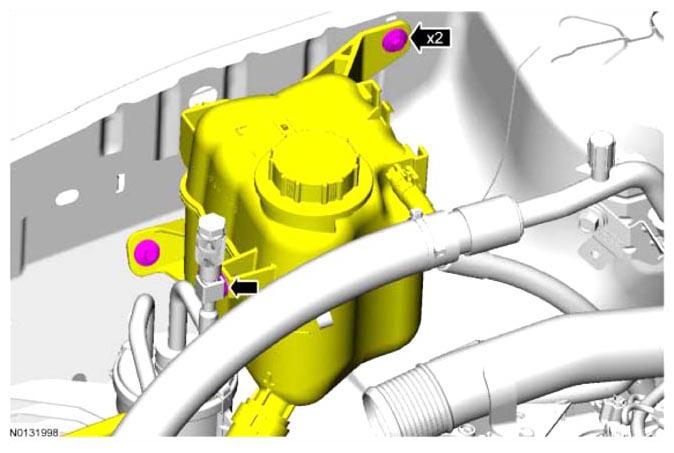

Remove the 2 bolts, the A/C tube retaining clip and position the degas bottle aside.
- To install, tighten to 9 Nm (80 lb-in).
Fig 3: Locating A/C Tube Retaining Clip And Bolt
Courtesy of FORD MOTOR CO.
Remove the 4 nuts, the 3 bolts and the engine support insulator.
- To install, tighten bolts to 90 Nm (66 lb-ft).
- To install, tighten nuts to 125 Nm (92 lb-ft).
Fig 4: Locating Engine Support Insulator With Bolts And Nuts
Courtesy of FORD MOTOR CO.
