Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different variant/trim than selected.

Align the piston-to-connecting rod orientation marks and position the piston on the connecting rod.

Fig 1: Positioning Piston On Connecting Rod
Courtesy of FORD MOTOR CO.
NOTE: Lubricate the piston pin and pin bore with clean engine oil.

Install the piston pin in the piston and connecting rod assembly.

Fig 2: Identifying Piston Pin In Piston And Connecting Rod Assembly
Courtesy of FORD MOTOR CO.
Install the 2 new piston pin retainers in the piston.

Fig 3: Locating Piston Pin Retainers In Piston
Courtesy of FORD MOTOR CO.
NOTE: Lubricate the piston and the new piston rings with clean engine oil.

Install the piston rings on the piston.

Fig 4: Locating Piston Rings On Piston
Courtesy of FORD MOTOR CO.

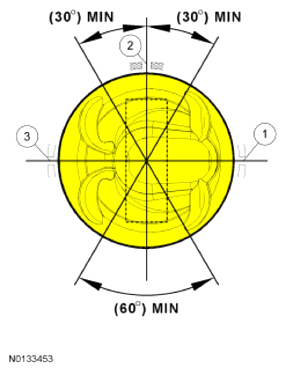

Align the piston rings on the piston.
1. Upper oil control segment ring gap location
2. Oil control spacer gap location
3. Lower oil control segment ring gap location
Fig 5: Identifying Upper And Lower Oil Control Segment Ring Gap And Spacer Gap Locations
Courtesy of FORD MOTOR CO.
