Fuel Cooler: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

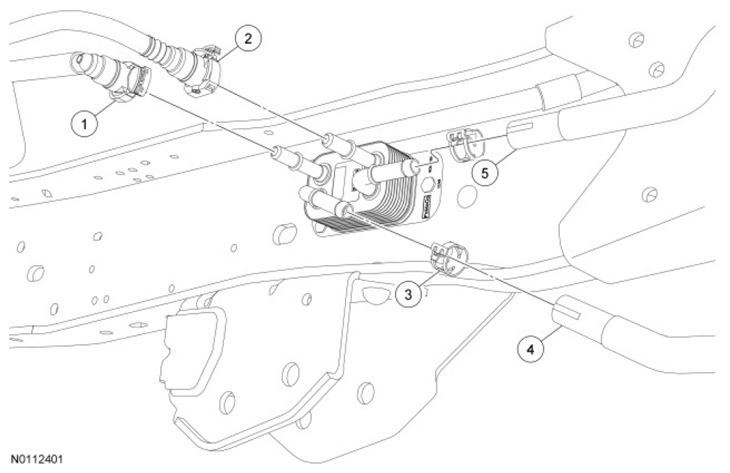

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9S278 |
Fuel cooler-to-diesel fuel conditioning module fuel hose |
| 2 |
9J338 |
Engine-to-fuel cooler fuel hose |
| 3 |
W527356 |
Coolant hose clamp (2 required) |
| 4 |
- |
Radiator-to-fuel cooler coolant hose (part of 8D011) |
| 5 |
- |
Fuel cooler-to-degas bottle hose (part of 8D011) |

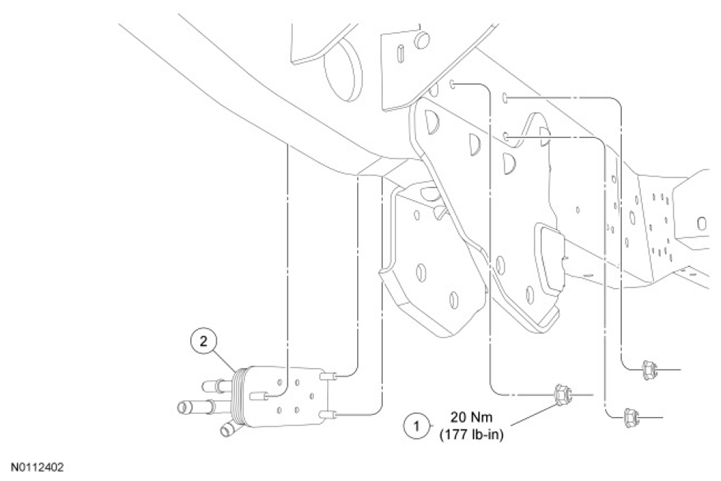

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W520102 |
Fuel cooler nuts (3 required) |
| 2 |
9N103 |
Fuel cooler |
