Wastegate Control Valve
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

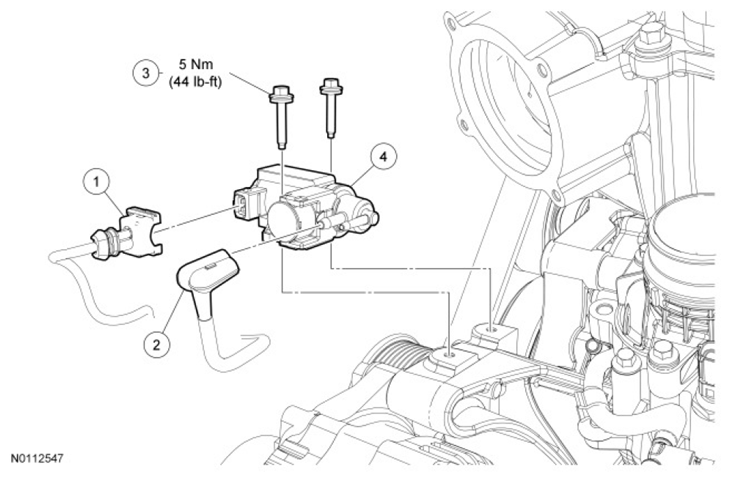

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wastegate control valve electrical connector (part of 12B637) |
| 2 | 9D430 | Wastegate control valve vacuum fitting |
| 3 | W708833 | Wastegate control valve bolt (2 required) |
| 4 | 9E882 | Wastegate control valve |
- Remove the Throttle Body (TB). For additional Information, refer to FUEL CHARGING AND CONTROLS - 6.7L DIESEL .
- Disconnect the wastegate control valve electrical connector.
- Disconnect the wastegate control valve vacuum fitting.
- Remove the 2 bolts and the wastegate control valve.
- To install, tighten to 5 Nm (44 lb-in).
- To install, reverse the removal procedure.
