Turbocharger Assembly
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

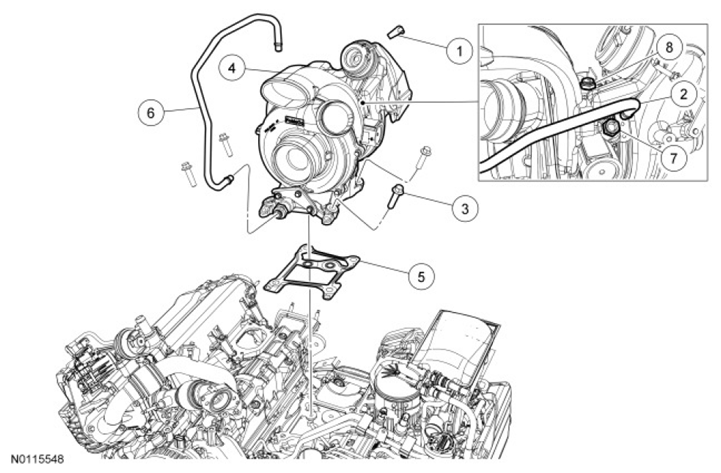

Turbocharged vehicles under 6350 kg (14, 000 lb) Gross Vehicle Weight Rating (GVWR) shown, turbocharged vehicles over 6350 kg (14, 000 lb) GVWR similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Turbocharger wastegate actuator vacuum supply hose (part of 9D430) (if equipped) |
| 2 | 9U469 | Turbocharger coolant outlet tube |
| 3 | W500120 | Turbocharger bolt (4 required) |
| 4 | 6K682 | Turbocharger |
| 5 | 6466 | Turbocharger gasket |
| 6 | 6B689 | Turbocharger oil supply tube |
| 7 | 6A968 | Turbocharger coolant tube fitting |
| 8 | 6A968 | Turbocharger oil supply tube fitting |
-
NOTE: Vehicles with over 6350 kg (14, 000 lb) Gross Vehicle Weight Rating (GVWR), will only have the lower turbocharger inlet boot and no wastegate actuator.
Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
