Disassembly And Assembly: Turbocharger: Assembly

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Using a new gasket and the aid of an assistant, install the pedestal on the turbocharger.

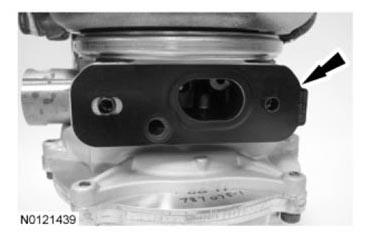

Fig 1: Locating Pedestal
Courtesy of FORD MOTOR CO.
Install the 2 new pedestal-to-turbocharger bolts and washers and tighten in 2 stages.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 180 degrees.

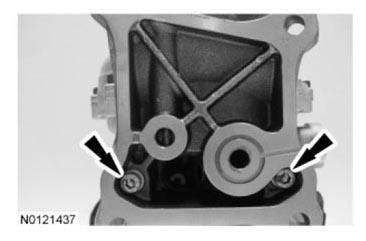

  Fig 2: Locating Pedestal-To-Turbocharger Bolts
  Courtesy of FORD MOTOR CO.
Install the turbocharger-to-pedestal bracket and the 3 new bolts finger tight.
- Do not torque at this time.

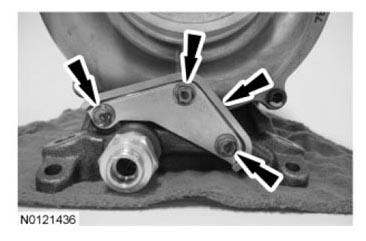

  Fig 3: Locating Turbocharger-To-Pedestal Bracket Bolts
  Courtesy of FORD MOTOR CO.
Tighten the 3 bolts to 11 Nm (97 lb-in) in sequence shown in the illustration.

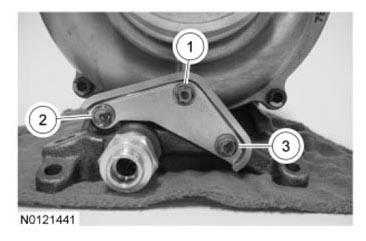

Fig 4: Locating Turbocharger-To-Pedestal Bracket Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
