Piezo Actuated Fuel Injector Externals

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

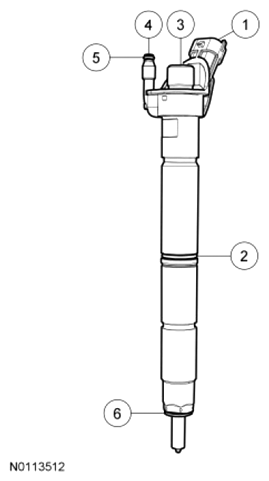

Fig 1: Identifying Piezo Actuated Fuel Injector Externals Components
G07481725Courtesy of FORD MOTOR CO.
Item Description
1 Fuel injector electrical connector
2 Fuel injector body O-ring seal
3 High-pressure fuel inlet
4 Low-pressure fuel return outlet
5 Low-pressure fuel return outlet O-ring seal
6 Copper combustion gasket
