Throttle Body - Spacer: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty and 2013 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

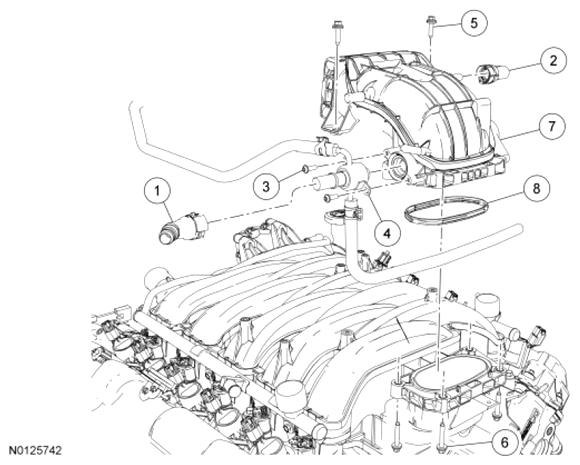

| Item | Part Number | Description |
|---|---|---|
| 1 | 6K817 | PCV tube quick connect coupling |
| 2 | 9F933 | Evaporative Emission (EVAP) canister purge valve vacuum tube quick connect coupling |
| 3 | W506964 | PCV heater element screw (2 required) |
| 4 | 9A474 | PCV heater element |
| 5 | W503275 | Throttle Body (TB) spacer bolt (2 required) |
| 6 | W503280 | Lower TB spacer bolt (4 required) |
| 7 | 9A589 | TB spacer |
| 8 | 9L437 | TB spacer gasket |
