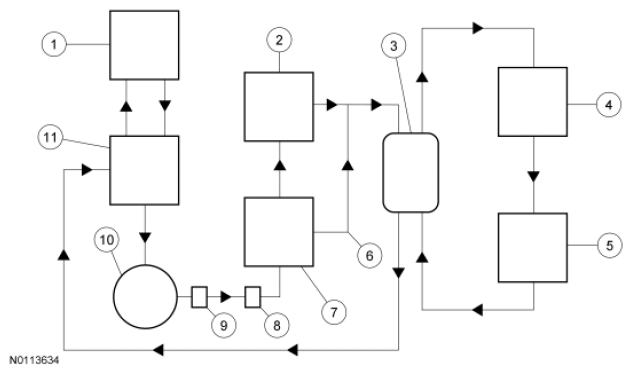

Fuel Cooling System
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Number | Description |
|---|---|---|
| 1 | - | Fuel Tank |
| 2 | - | Fuel Rail |
| 3 | - | Fuel Cooler |
| 4 | - | Powertrain Secondary Cooling System Coolant Pump |
| 5 | - | Powertrain Secondary Cooling System Radiator |
| 6 | - | High Pressure Pump Bypass |
| 7 | - | High Pressure Pump |
| 8 | - | Fuel Rail Temperature (FRT) Sensor |
| 9 | - | Fuel Delivery Pressure Switch |
| 10 | - | Secondary Fuel Filter |
| 11 | - | Fuel Conditioning Module |
