Fuel Injector
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

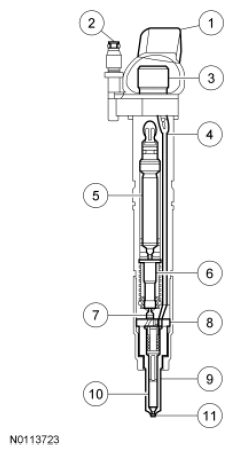

| Item | Number | Description |
|---|---|---|
| 1 | - | Wiring Harness Electrical Connector |
| 2 | - | Fuel Return |
| 3 | - | High Pressure Delivery Connection |
| 4 | - | High Pressure Fuel Passage |
| 5 | - | Piezo Actuator |
| 6 | - | Hydraulic Coupler |
| 7 | - | Control Valve |
| 8 | - | Intermediate Plate |
| 9 | - | Nozzle |
| 10 | - | Nozzle Needle (Pintle) |
| 11 | - | Fuel Delivery Orifices (8 Each) |
