Fuel Cooler
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

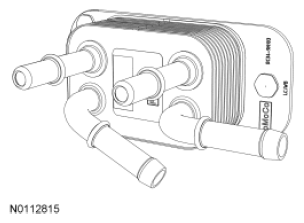

The fuel cooler is a liquid-to-liquid heat exchanger located on the inside of the left frame rail. Fuel that bypasses the high pressure fuel injection pump and the fuel pressure control valve is subjected to high temperatures. The fuel cooler transfers this heat to the coolant before the fuel is returned to the fuel conditioning module. Refer to FUEL SYSTEM in this article for additional information.
