EGR Cooler Bypass Valve

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

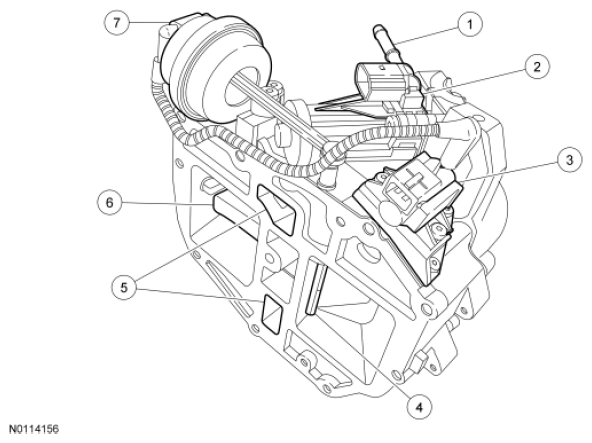

Fig 1: Identifying Exhaust Gas Recirculation (EGR) Cooler Bypass Valve Components
G07432262
Item Number Description
1 - Engine Coolant Return
2 - EGR Valve And The EGR Valve Position Sensor
3 - EGR Cooler Bypass Valve Solenoid
4 - EGR Cooler Bypass Valve
5 - Engine Coolant Supply To The EGR Valve From The RH Valve Cover
6 - EGR Outlet To The Intake Manifold
7 - EGR Cooler Bypass Valve Actuator

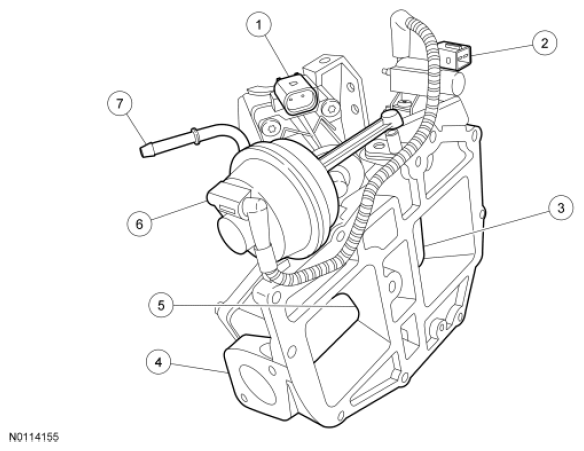

Fig 1: Identifying EGR Cooler Bypass Valve Components
G07432263
Item Number Description
1 - EGR Valve And The EGR Valve Position Sensor
2 - EGR Cooler Bypass Valve Solenoid
3 - EGR Outlet To The EGR Cooler
4 - EGR Outlet To The Intake Manifold
5 - EGR Outlet To The Intake Manifold During EGR Cooler Bypass
6 - EGR Cooler Bypass Valve Actuator
7 - Engine Coolant Return
