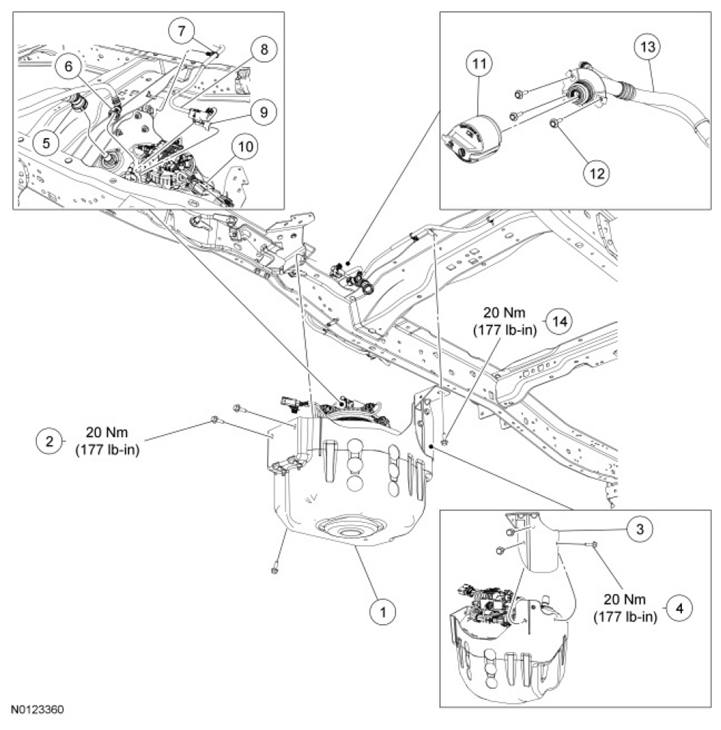

Frame (Inboard) Reductant Tank, Reductant Tank Filler Hose and Reductant Pressure Line
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The reductant tank, reductant pressure line and reductant injector will vary by vehicle wheelbase.
NOTE:
Inboard frame reductant tank filler hose and line connections shown, outboard similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 5J228 | Reductant tank assembly |
| 2 | N804804 | Reductant tank bolt (3 required) |
| 3 | 5J251 | Reductant tank bracket |
| 4 | N804804 | Reductant tank bracket bolt (3 required) |
| 5 | 5J232 | Reductant tank filler hose |
| 6 | - | Reductant tank filler hose vent (part of 5J232) |
| 7 | - | Reductant pressure line retainer (part of 5J249) |
| 8 | 5J249 | Reductant pressure line |
| 9 | - | Reductant pressure line heater connector (part of 5J249) |
| 10 | - | Reductant tank wire harness electrical connector (part of 14407) |
| 11 | 5K204 | Reductant tank filler cap |
| 12 | W711103 | Reductant tank filler hose screw (3 required) |
| 13 | 5J232 | Reductant tank filler hose |
| 14 | W710309 | Reductant tank bolt |
