Reductant Heater and Sender Assembly: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inboard mounted reductant tank heater and sender procedure shown below, outboard similar.

Remove the reductant tank. For additional information, refer to REDUCTANT TANK .
Remove the reductant pump assembly. For additional information, refer to REDUCTANT PUMP ASSEMBLY .
NOTE: The outboard mounted reductant tank heater and sender has 4 wire routing retainers attached to the lock ring. Note the location of all wire routing retainers for installation.

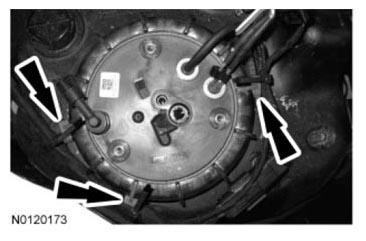

Detach the 3 wire routing clips from the reductant heater and sender assembly lock ring.

Fig 1: Locating Wire Routing Clips On Reductant Heater And Sender Assembly Lock Ring
Courtesy of FORD MOTOR CO.

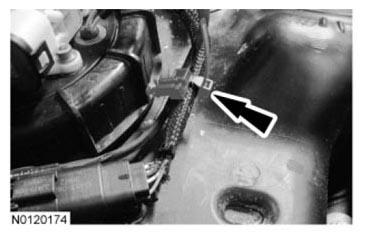

Remove the wire routing clip from the wire harness.

Fig 2: Locating Wire Routing Clip
Courtesy of FORD MOTOR CO.

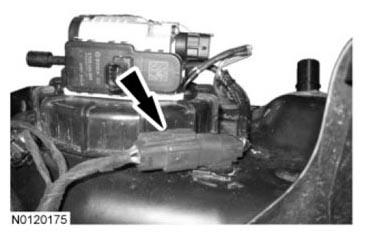

Disconnect the electrical connector and remove the wire harness.

Fig 3: Locating Reductant Heater And Sender Assembly Electrical Connector
Courtesy of FORD MOTOR CO.

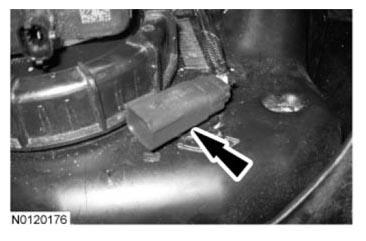

Detach the electrical connector from the reductant tank.

Fig 4: Locating Reductant Tank Electrical Connector
Courtesy of FORD MOTOR CO.

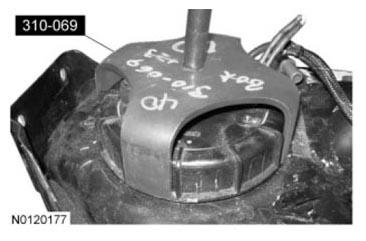

Using the Fuel Tank Sender Unit Wrench, remove the reductant heater and sender assembly lock ring.

Fig 5: Locating Fuel Tank Sender Unit Wrench On Reductant Heater And Sender Assembly
Courtesy of FORD MOTOR CO.
NOTE: Do not pry the top of the reductant heater and sender assembly out of the reductant heater and sender assembly seal. Doing so may cause reductant heater and sender assembly seal damage.

Remove the top of the reductant heater and sender assembly out of the reductant heater and sender assembly seal.
Remove the reductant heater and sender assembly seal.
- Discard the reductant heater and sender assembly seal.
NOTE: Note the position of the reductant heater and sender assembly in the reductant tank for installation.

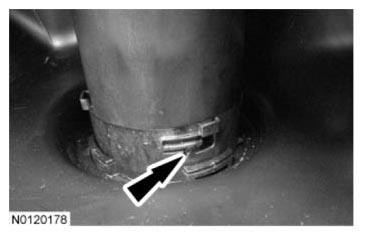

Reach inside the reductant tank opening, and turn the reductant heater and sender assembly counterclockwise to release the 4 reductant heater and sender assembly retainers (one shown) from the base in the bottom of the reductant tank.
- Remove the reductant heater and sender assembly from the tank.
