6.2L (2V)

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

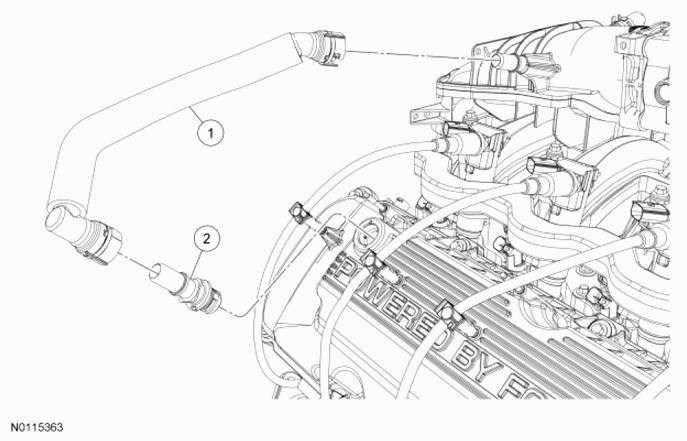

Fig 1: Identifying PCV Tube And Valve (6.2L)
G07411508Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6A664 PCV tube
2 6A666 PCV valve
