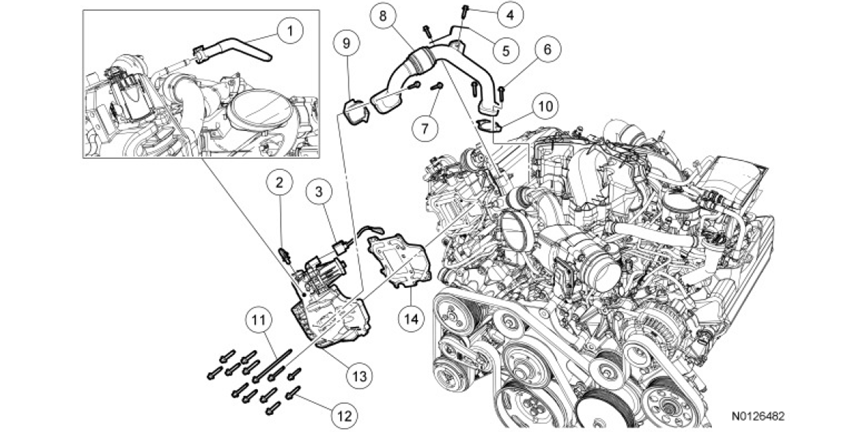

Exhaust Gas Recirculation (EGR) Valve - Exploded View, 6.7L Diesel
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8075 | EGR valve coolant vent hose |
| 2 | 9Y438 | Coolant hose retainer |
| 3 | - | EGR valve electrical connector (part of 12B637) |
| 4 | W500214 | EGR valve inlet tube bracket bolt (2 required) |
| 5 | 9L456 | EGR valve inlet tube bracket |
| 6 | W714852 | EGR valve inlet tube bolt (tube-to-exhaust manifold) (2 required) |
| 7 | W714852 | EGR valve inlet tube bolt (tube-to-EGR valve) (2 required) |
| 8 | 9E469 | EGR valve inlet tube |
| 9 | 9D476 | EGR valve inlet tube-to-EGR valve gasket (part of 9P455) |
| 10 | 9E464 | EGR valve inlet tube-to-exhaust manifold gasket (part of 9P455) |
| 11 | W714165 | EGR valve bolt (part of 9P455) |
| 12 | W500700 | EGR valve bolt (12 required) |
| 13 | 9D475 | EGR valve |
| 14 | 9D476 | EGR valve gasket |
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
