EGR valve cooler (View 2 of 3)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

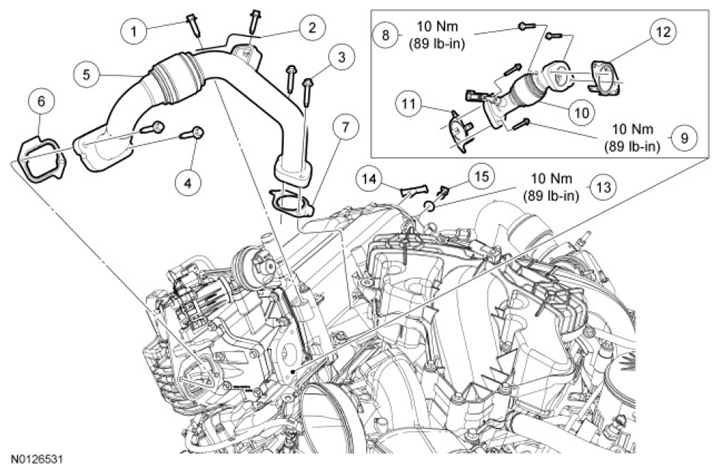

Fig 1: Exploded View Of Exhaust Gas Recirculation Cooler Components With Torque Specifications - 6.7L Diesel (2 Of 3)
| Item | Part Number | Description |
|---|---|---|
| 1 | W500214 | EGR valve inlet tube bracket bolt (2 required) |
| 2 | 9L456 | EGR valve inlet tube bracket |
| 3 | W714852 | EGR valve inlet tube bolt (tube-to-exhaust manifold) (2 required) |
| 4 | W714852 | EGR valve inlet tube bolt (tube-to-EGR valve) (2 required) |
| 5 | 9E469 | EGR valve inlet tube |
| 6 | 9D476 | EGR valve inlet tube-to-EGR valve gasket |
| 7 | 9E464 | EGR valve inlet tube-to-exhaust manifold gasket |
| 8 | W500300 | Bypass outlet tube bolt (tube-to-intake manifold) (2 required) |
| 9 | W500300 | Bypass outlet tube bolt (tube-to-EGR valve) (2 required) |
| 10 | 9H449 | Bypass outlet tube |
| 11 | 9E464 | Bypass outlet tube-to-EGR valve gasket |
| 12 | 9D463 | Bypass outlet tube-to-intake manifold gasket |
| 13 | W520101 | Exhaust Pressure (EP) sensor tube nut |
| 14 | - | Wiring harness retainer (part of 12B637) |
| 15 | - | Wiring harness retainer (part of 12B637) |
