EGR valve cooler (View 1 of 3)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

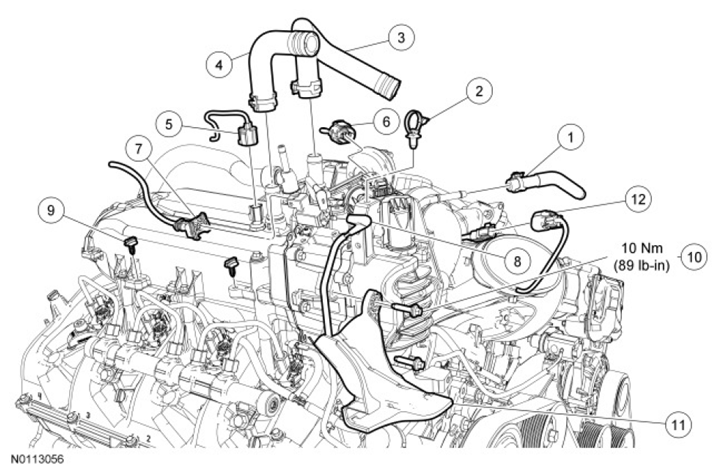

Fig 1: Exploded View Of Exhaust Gas Recirculation Cooler Components With Torque Specifications - 6.7L Diesel (1 Of 3)
| Item | Part Number | Description |
|---|---|---|
| 1 | 8075 | EGR valve coolant vent hose |
| 2 | 9Y438 | Coolant hose retainer |
| 3 | 9Y439 | EGR cooler coolant hose |
| 4 | 9Y438 | EGR cooler coolant hose |
| 5 | - | Engine Coolant Temperature (ECT) sensor - secondary cooling system ECT2 electrical connector (part of 12B637) |
| 6 | - | EGR valve electrical connector (part of 12B637) |
| 7 | - | Bypass solenoid electrical connector (part of 12B637) |
| 8 | 9D430 | Bypass solenoid vacuum hose |
| 9 | 6N028 | RH upper sound shield retainer (2 required) |
| 10 | W5032773 | Wiring harness bracket bolt (2 required) |
| 11 | 14A099 | Wiring harness bracket |
| 12 | 12B591 | Exhaust Gas Recirculation Temperature (EGRT) sensor electrical connector |
