Quick Connect Coupling Retainer Clip: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

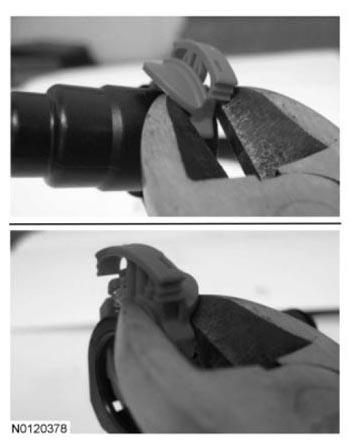

  1. Remove the top portion of the retainer clip by cutting both sides of the retainer clip below the tab of the primary latch.
    G07484359

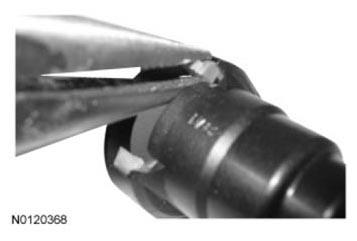

  2. Grasp the side of the remaining retainer clip, pull outward and remove the retainer clip from the quick connect coupling body.
    G07484360
  3. Inspect the inside of the quick connector and remove any debris.
    Fig 1: Locating Quick Connector Inside Portion
    G07484361Courtesy of FORD MOTOR CO.
