Wiper Blade and Pivot Arm Adjustment

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Cycle and park the windshield wipers.
NOTE: Make sure there is no mechanical binding in the linkage preventing the wiper arms from returning to the fully PARKED position.

Verify the distance between the center of the passenger windshield wiper blade and the bottom of the windshield glass is within specification.

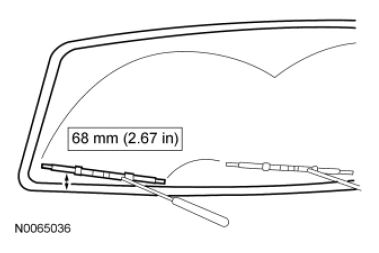

Fig 1: Identifying Distance Between Center Of Passenger Windshield Wiper Blade And Bottom Of Windshield Glass
Courtesy of FORD MOTOR CO.
Verify the distance between the center of the driver windshield wiper blade and the bottom of the windshield glass is within specification.

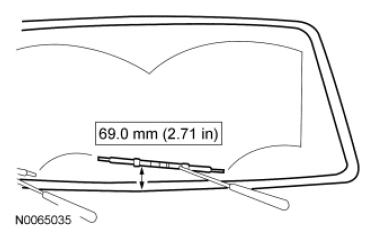

Fig 2: Identifying Distance Between Center Of Driver Windshield Wiper Blade And Bottom Of Windshield Glass
Courtesy of FORD MOTOR CO.
If the distance is not within specification, remove the windshield wiper pivot arms and reposition to specification. For additional information, refer to WIPER PIVOT ARM .
