View 1 of 2
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

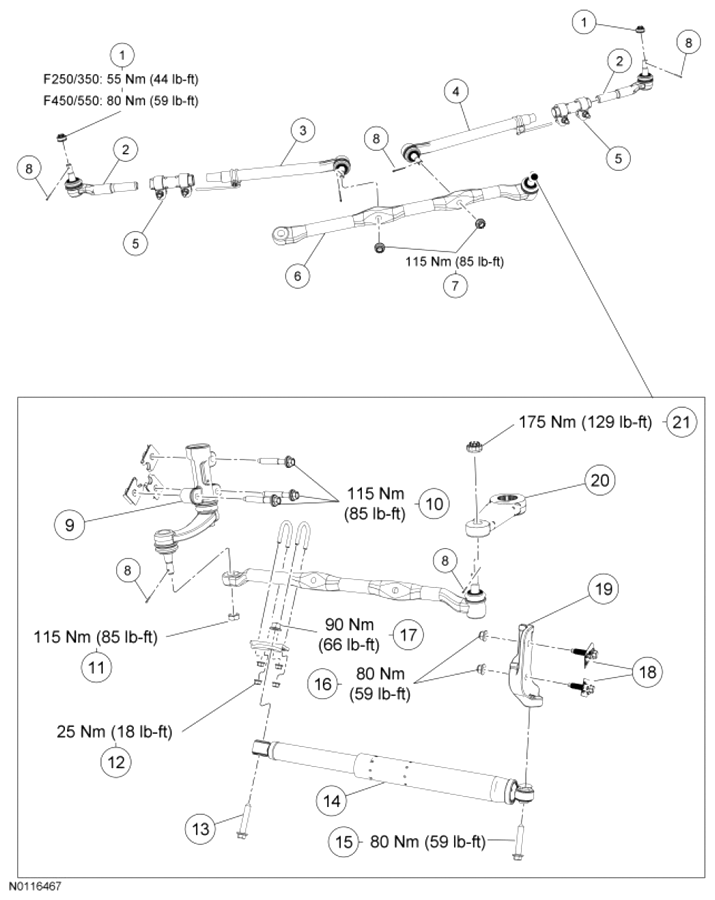

| Item | Part Number | Description |
|---|---|---|
| 1 | W711373 | Tie-rod end nut |
| 2 | 3A131 | Outer tie-rod end |
| 3 | 3A130B | RH inner tie-rod |
| 4 | 3A130A | LH inner tie-rod |
| 5 | 3281 | Adjusting sleeve |
| 6 | 3304 | Center link |
| 7 | W711373 | Center link nut (2 required) |
| 8 | N642567 | Cotter pin (6 required) |
| 9 | 3A034 | Idler arm |
| 10 | W714550 | Idler arm bracket-to-frame bolt (3 required) |
| 11 | W711373 | Idler arm-to-center link nut |
| 12 | - | Steering linkage-to-center link bracket nut (part of 3304) |
| 13 | W714549 | Steering linkage damper-to-center link bracket bolt |
| 14 | 3E651 | Steering linkage damper |
| 15 | W714596 | Steering linkage damper-to-frame bracket bolt (1 required) |
| 16 | W520113 | Frame bracket-to-frame nut (2 required) |
| 17 | W520114 | Steering linkage damper-to-center link bracket nut |
| 18 | W715010 | Damper bracket-to-frame bolt (2 required) |
| 19 | 3E652 | Frame bracket |
| 20 | 3590 | Sector shaft arm |
| 21 | W710907 | Sector shaft nut |
