Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arms. For additional information, refer to WIPERS AND WASHERS .
  2. Remove the radio antenna mast.
  3. Remove the cowl panel weatherstrip.

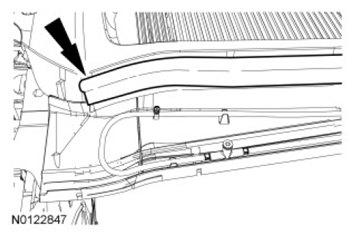

    Fig 1: Locating Cowl Panel Weatherstrip
    G07485449Courtesy of FORD MOTOR CO.
  4. NOTE: Remove the cowl top vent panel from the center to avoid damage to the locating pins at each outer end of the cowl panels.

    Raise the cowl top vent panel.

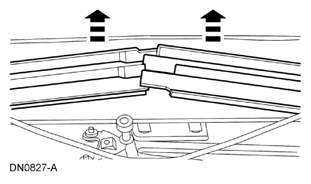

    Fig 2: Removing Cowl Top Vent Panel
    G07974707Courtesy of FORD MOTOR CO.
  5. Remove the cowl top vent panel.
  6. To install, reverse the removal procedure.
