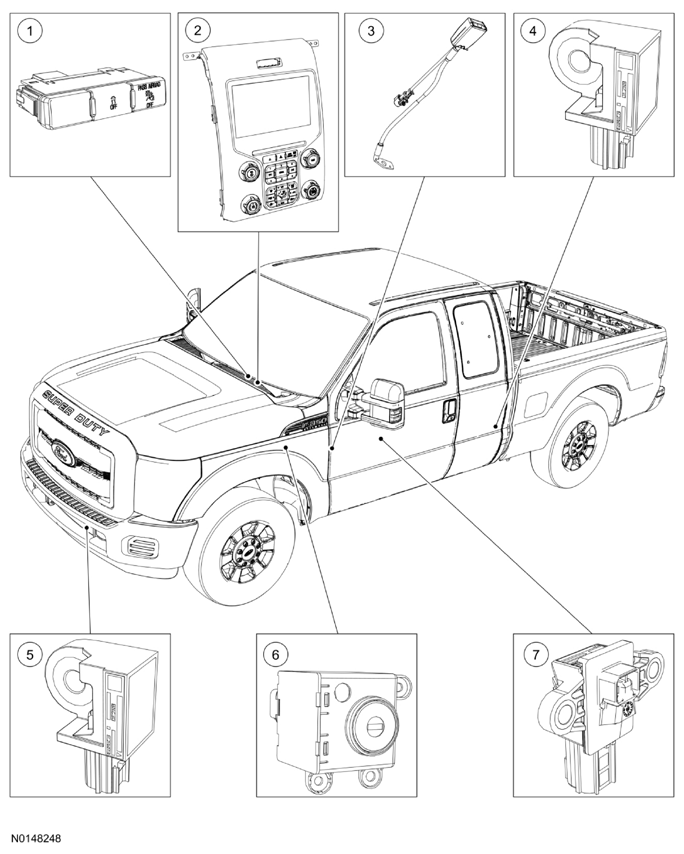

Supplemental Restraint System (SRS) Components (Illustration 1 of 2)
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
SuperCab shown, other cab styles similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 13D730 | Passenger Air Bag Deactivation (PAD) indicator (if equipped, vehicles without 4.2" LCD IPC display only) |
| 2 | 18842 | Front Controls Interface Module (FCIM) (if equipped, includes Passenger Air Bag Deactivation (PAD) indicator) (vehicles with 4.2" LCD IPC display only) |
| 3 | 2561203 | Driver seat safety belt buckle and switch assembly |
| 4 | 14B345 | Second row side impact severity sensor (SuperCab and Crew Cab vehicles only) (vehicles equipped with side airbag and Safety Canopy® only) (if equipped) |
| 5 | 14B345 | Front impact severity sensor (if equipped) |
| 6 | 14B268 | Passenger Air Bag Deactivation (PAD) switch (if equipped) |
| 7 | 14B345 | Front door side impact sensor (pressure-based sensor) (vehicles equipped with side airbag and Safety Canopy® only) |
