Removal And Installation: Thermostat: Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

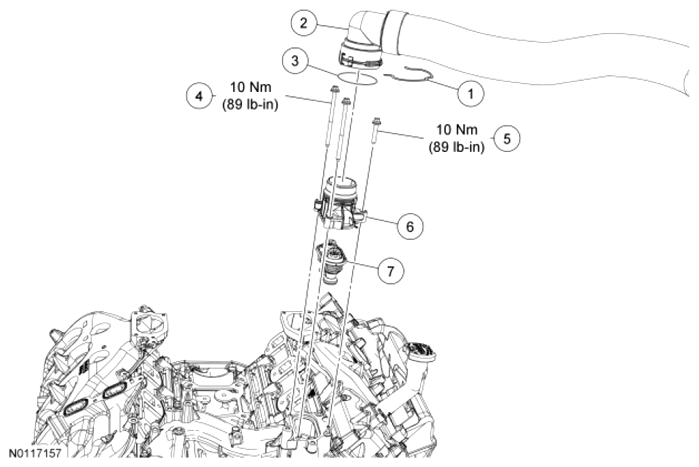

| Item | Part Number | Description |
|---|---|---|
| 1 | 8D037 | Upper radiator hose spring clip (part of 8B274) |
| 2 | 8B274 | Upper radiator hose |
| 3 | 8D058 | Upper radiator hose O-ring seal (part of 8B274) |
| 4 | W707083 | Coolant outlet connection bolt (2 required) |
| 5 | W503280 | Coolant outlet connection bolt |
| 6 | 8594 | Coolant outlet connection |
| 7 | 8575 | Thermostat assembly |
