Removal and Installation
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the upper cooling fan shroud. For additional information, refer to COOLING FAN SHROUD - UPPER .
- Disconnect the cooling fan clutch electrical connector.
- Remove the cooling fan clutch electrical connector bracket bolt.
- To install, tighten to 24 Nm (18 lb-ft).

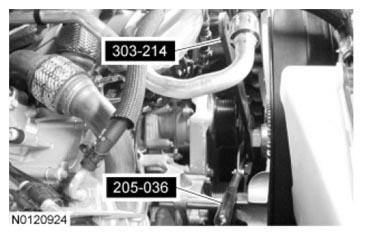

- Using the Wrench and the Fan Clutch Nut Wrench, remove the cooling fan.
- To install, tighten to 133 Nm (98 lb-ft).
- If servicing the cooling fan or the cooling fan clutch, remove the four nuts and separate the cooling fan from the cooling fan clutch.
- To install, tighten to 7 Nm (62 lb-in).
- To install, reverse the removal procedure.
